Direct-Drive SCARA Robots: Revolutionizing Precision in Semiconductor Manufacturing
In the high-stakes world of semiconductor manufacturing, where nanometer-scale precision meets relentless production demands, the choice of automation technology can define success. Among the critical tools enabling this industry’s incredible advancements is the direct-drive SCARA robot. This innovative robotic architecture is transforming key semiconductor production processes by offering unparalleled accuracy, speed, and reliability. This article explores how direct-drive SCARA robots are becoming indispensable assets in modern fabs (fabrication plants), driving yield improvements and operational efficiency.
The Semiconductor Precision Challenge
Semiconductor manufacturing is arguably the most precision-dependent industry globally. Processes like wafer handling, die bonding, dispensing, and precision assembly require sub-micron repeatability, ultra-clean operation, and blistering cycle times. Contamination, vibration, or misalignment measured in microns can render a multi-thousand-dollar wafer useless. Traditional robots with mechanical transmission elements like belts or gearboxes can introduce minute errors, backlash, and particulate generation—unacceptable compromises in a cleanroom environment.
What is a Direct-Drive SCARA Robot?
To appreciate its value, let’s break down the technology. A SCARA (Selective Compliance Assembly Robot Arm) robot is renowned for its fast, cylindrical motion in a horizontal plane, ideal for pick-and-place and assembly tasks. In a conventional belt-driven or gear-driven SCARA, motors use mechanical transmissions to move the arm joints.
A Direct-Drive SCARA robot eliminates these intermediate mechanical components. Here, high-torque motors are directly coupled to the robot’s arm joints. The first axis (base) and second axis (elbow) are powered by direct-drive motors, creating a mechanically simplistic yet powerful and responsive system.
Key Advantages for Semiconductor Applications
1. Supreme Precision and Accuracy
The absence of belts, gears, or harmonic drives means zero backlash and drastically reduced mechanical compliance. This translates to exceptional positional repeatability, often in the single-digit micron range. For tasks like placing a delicate die onto a substrate or positioning a wafer for inspection, this unwavering accuracy directly boosts yield and process consistency.
2. Unmatched Speed and Throughput
Direct-drive systems accelerate and decelerate much faster due to higher stiffness and lower inertia. In semiconductor production, where milliseconds per cycle translate to significant throughput over millions of cycles, this speed advantage is a major competitive edge. The smooth, high-speed motion profile also minimizes dwell time, increasing overall equipment effectiveness (OEE).
3. Cleanroom Compatibility & Low Maintenance
Particle generation is the enemy of chip fabrication. Mechanical transmissions wear over time, shedding microscopic contaminants. Direct-drive robots, with their minimal moving parts and no lubricated gears or belts, are inherently cleanroom-optimized. They meet rigorous ISO Class 1-5 cleanroom standards. Furthermore, the reduced wear-and-tear means lower maintenance costs, less downtime, and longer service intervals—critical for 24/7 semiconductor production lines.
4. Superior Vibration Damping & Stability
High-speed moves can induce residual vibration, forcing robots to wait for oscillations to settle before proceeding—a phenomenon known as “settling time.” The rigidity of direct-drive arms allows for aggressive motion profiles with dramatically reduced settling time. This results in faster, more stable cycles, particularly in sensitive processes like precision dispensing or contact probing.
5. Enhanced Reliability and Durability
With fewer mechanical components prone to failure, direct-drive SCARA robots offer significantly higher mean time between failures (MTBF). This reliability is non-negotiable in capital-intensive semiconductor fabs where unplanned stoppages can cost millions in lost production.
Critical Semiconductor Use Cases

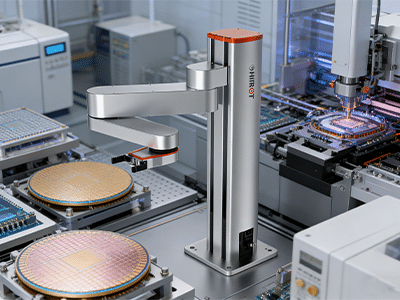

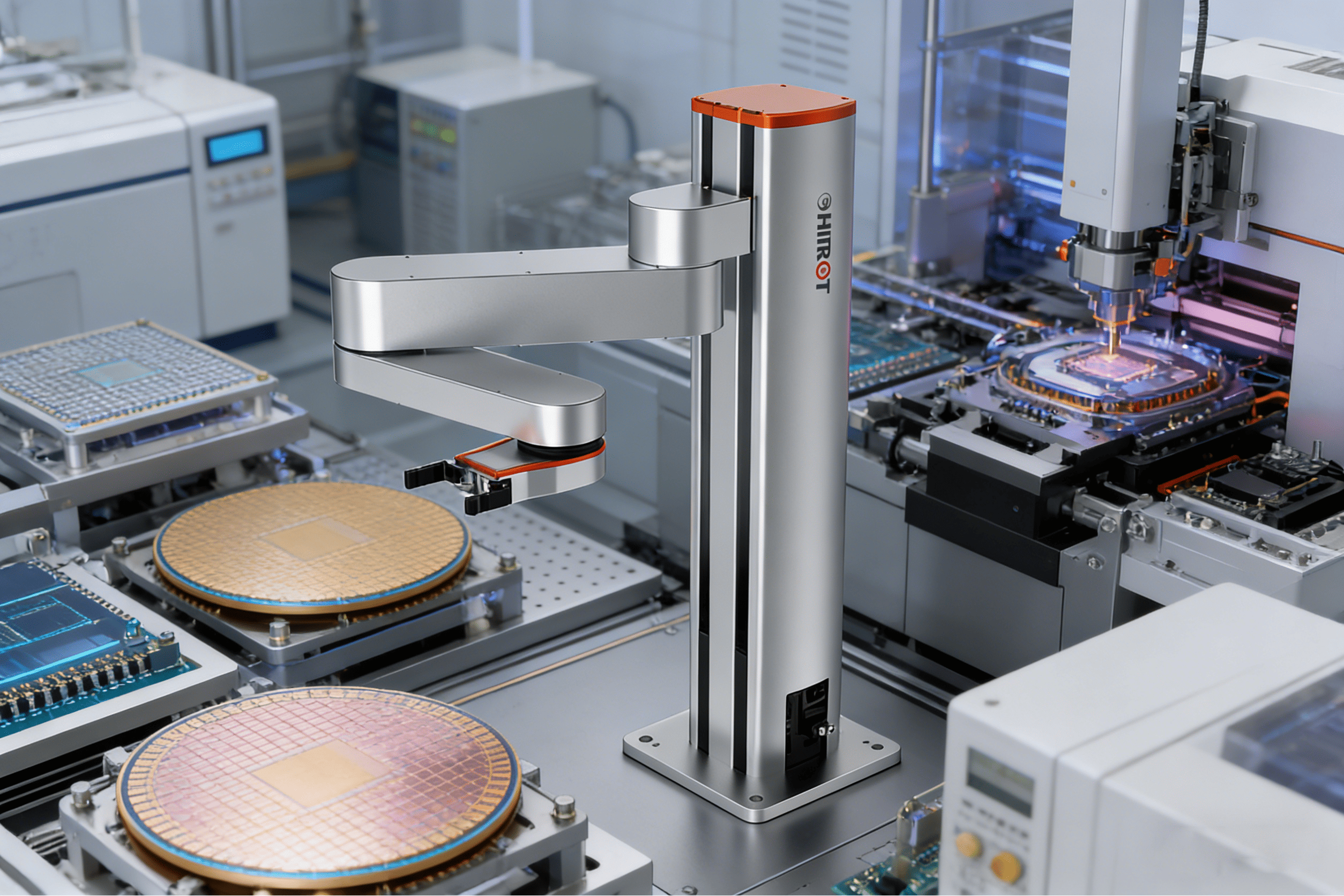

- Wafer Handling & Loading: Transferring silicon wafers between cassettes, process tools, and inspection stations with gentle, precise, and ultra-clean motion.
- Die Attach / Die Bonding: Precisely picking and placing singulated semiconductor dies onto lead frames, substrates, or packages with extreme placement accuracy and force control.
- Precision Dispensing: Applying underfill, epoxy, or adhesives with exceptional path repeatability and consistent start/stop control, enabled by the robot’s smooth motion.
- Laser Machining & Marking: Providing the stable, high-speed platform needed for precise laser operations on semiconductor packages.
- Optical Inspection & Metrology: Positioning wafers or components swiftly and accurately under high-resolution microscopes or sensors without inducing vibration.
Direct-Drive vs. Traditional Belt-Driven SCARA: A Clear Choice
While belt-driven SCARAs have served the industry well, the comparison for semiconductor applications is decisive. Belt-driven systems require regular tensioning, are more prone to backlash over time, generate more particles, and have longer settling times. The direct-drive SCARA’s advantages in precision, speed, cleanliness, and reliability make it the superior, total-cost-of-ownership (TCO) solution for high-end semiconductor manufacturing, despite a typically higher initial investment.
Conclusion: Investing in Foundational Technology
For semiconductor manufacturers, equipment is not just a purchase but a strategic investment in capability and yield. Integrating direct-drive SCARA robots into automation cells addresses the core industry imperatives: shrinking feature sizes, increasing wafer sizes, demanding higher yields, and operating flawlessly in pristine environments.
By delivering a unique combination of nanometer-worthy precision, cleanroom-ready operation, and high-speed durability, direct-drive SCARA technology is more than just an improvement—it’s a foundational element for the next generation of semiconductor manufacturing. As the industry advances towards more complex packaging (2.5D, 3D IC) and larger, thinner wafers, the role of this precise and reliable automation will only become more central.
