How SCARA Robots are Revolutionizing Medical Manufacturing & Diagnostics
The relentless pursuit of accuracy, speed, and sterility defines the medical industry. From life-saving diagnostics to implantable devices, the margin for error is zero. Enter the unsung hero of medical automation: the 4-axis medical scara robot. Engineered for tasks demanding lightning speed and micron-level precision in confined spaces, medical scara robots are transforming labs, production lines, and operating rooms. Let’s explore why this compact powerhouse is becoming indispensable in healthcare.
Why SCARA? The Perfect Match for Medical Demands
Unlike bulkier 6-axis robots optimized for multi-directional flexibility, SCARAs leverage a specialized kinematic structure: rigid horizontal-plane stability paired with intentional vertical compliance. This dual-character design mirrors the “firm-yet-gentle” dexterity required in medical workflows, where millimeter-scale operations must coexist with biological fragility.
Engineering Superiority: five pillars of medical scara robot
- Ultra-High Throughput & Motion Efficiency
With cycle times crushing the 0.3-second barrier (vs. 6-axis’ 0.8s+), SCARAs achieve 3X productivity in volume-critical tasks. In COVID-19 test kit production lines, this translates to 12,000 units/hour – a throughput unattainable by human teams or Cartesian systems. Harmonic drive transmissions eliminate backlash, enabling “snap-and-return” motions ideal for vial sorting in analyzers like Roche Cobas® systems.
- Micro-Scale Precision with Life-Science Calibration
<0.02mm repeatability isn’t just a spec – it’s a clinical imperative. When dispensing oncology drugs with <5μL tolerances or placing 0201-size capacitors on pacemaker PCBs, this precision prevents under-dosing and micro-shorts. Advanced models integrate laser interferometer feedback, dynamically compensating for thermal drift in BSC environments.
- Biomimetic Vertical Compliance: The “Soft Touch” Advantage
Proprietary Z-axis compliance mechanisms deliver adaptive force control (2-10N adjustable). This enables:
- – Pipette tip insertion into septum-capped vials without coring
- – Delicate capping of cryogenic tubes at -80°C without cracking
- – Safe handling of organ-on-chip devices with <1mN impact tolerance
- Space-Optimized Architecture for Constrained Environments
With footprints as compact as 0.15m² (e.g., Yamaha YKX series), SCARAs integrate into:
- – Class III biosafety cabinets handling Level 4 pathogens
- – Mobile phlebotomy carts for decentralized testing
- – GMP isolators for cell therapy fill-finish
- Contamination Control by Design
ISO Class 5 certification is baseline. Medical-grade SCARAs feature:
- – Vacuum-purged joints preventing lubricant outgassing
- – Electropolished stainless steel surfaces (Ra<0.8μm)
- – IP65 sealing resisting ethanol/bleach wipe-downs
Example: Z-Arm 2442 scara robot reduces particle counts by 99.97% vs. standard models.
Transformative Applications Redefining Healthcare

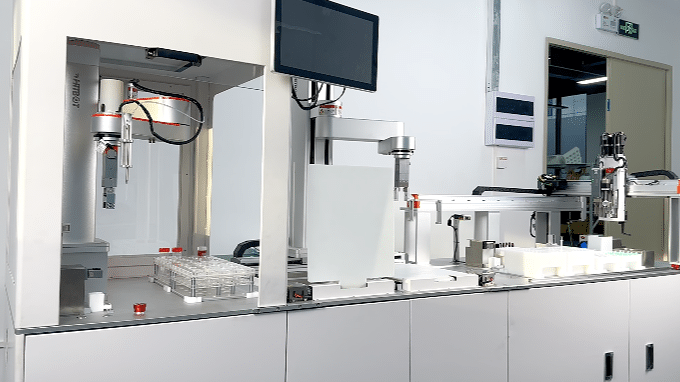

Diagnostics 4.0: The Automated Lab Revolution
– High-Density Sample Management
SCARAs orchestrate pre-analytical symphonies: decapping 500+ blood tubes/hour (avoiding aerosol hazards), aliquoting SARS-CoV-2 specimens into PCR plates with cross-contamination rates <0.001%, and archiving biobank samples at -196°C with barcode fidelity.
– Liquid Handling Intelligence
Integrated pressure sensors enable real-time meniscus detection during micro-dispensing – critical for CSF analysis where 2μL errors alter diagnoses. In NGS library prep, SCARAs achieve CVs <1% across 384-well plates, slashing reagent costs 30%.
PharmaTech: From Lab to Patient
– Aseptic Core Operations
In isolators producing mRNA vaccines, medical scara robots perform vial filling at 300U/min with <0.1% overfill, stoppering with <5μm placement accuracy, and laser-marking lot codes – all while maintaining sterility assurance levels (SAL 10⁻⁶).
– Connected Drug Delivery Systems
Auto-injector assembly lines leverage SCARAs for:
- » Plunger insertion into 0.3mL syringes (±0.01mm force control)
- » Needle cannula welding with thermal error compensation
- » On-the-fly vision inspection for particulate matter
Surgical & Point-of-Care Innovation
– OR Automation
Medical scara robots assist in robotic surgery backtables: passing instruments via voice command, counting sponges via RFID, and preparing bone cement with 60-second precision timers.
– Hospital Pharmacy 2.0
IV compounding robots (like Baxter’s RIVA) use SCARA arms to mix cytotoxic drugs in negative-pressure enclosures, reducing pharmacist exposure by 100% while achieving <2% dosage error.
> SCARA’s Domains: Repetitive pick-place (＞10k cycles/day), micro-dispensing (nL-μL), screw-driving (＜5N·m torque), and precision assembly (＞50μm tolerances).
Implementation Framework for Medical Integrators
- Risk-Driven Validation
- – Execute IQ/OQ/PQ protocols per GAMP 5
- – Document SIL-2 safety ratings for emergency stops
- – Validate 21 CFR Part 11 electronic records (e.g., Epson RC+ 7.0)
- Hybrid Workflow Design
Combine SCARAs with:
- – Conveyors with UHF RFID tracking (sample chain-of-custody)
- – Machine vision (Cognex In-Sight for vial defect detection)
- – AI-driven predictive maintenance (vibration analysis on R-axis)
- Regulatory Firewall
Ensure:
- – CE marking with MDD 93/42/EEC
- – IEC 60601-1 electrical safety
- – ISO 13849 PLd safety circuits
As personalized medicine drives smaller-batch production and diagnostics shift toward decentralized labs, SCARA’s blend of speed, precision, and compactness positions it as the cornerstone of medical automation – turning biological complexity into reproducible outcomes.
The Future: AI-Driven SCARAs in Personalized Medicine
Next-gen SCARAs are evolving with:
- Machine Vision: Identifying defective pills or misaligned vial caps in real-time.
- Force Sensing: Adjusting insertion pressure for delicate cell manipulation.
- IoT Connectivity: Predictive maintenance to avoid downtime in critical labs.
- Flexible Cobots: Safely automating pharmacy compounding beside technicians.
> “In precision medicine, a 0.1mm error can alter a diagnosis. SCARAs deliver the consistency human hands can’t replicate 10,000 times a day.” – Lab Automation Director, Johns Hopkins.
Conclusion: Precision as a Standard of Care
The 4-axis SCARA robot is more than automation – it’s a commitment to patient safety. By handling critical tasks with superhuman speed and accuracy, it frees medical staff to focus on innovation and patient care. As diagnostics and personalized therapies advance, SCARAs will sit at the heart of the medical revolution, ensuring every sample, device, and dose meets the highest standard.
Ready to elevate your medical workflows? [Explore Our Medical-Grade SCARA Solutions] or [Request a Custom Feasibility Study] to see how precision automation can transform your lab or production line.
> Have you implemented SCARAs in medical settings? What challenges did you solve? Share your insights below!
